Description

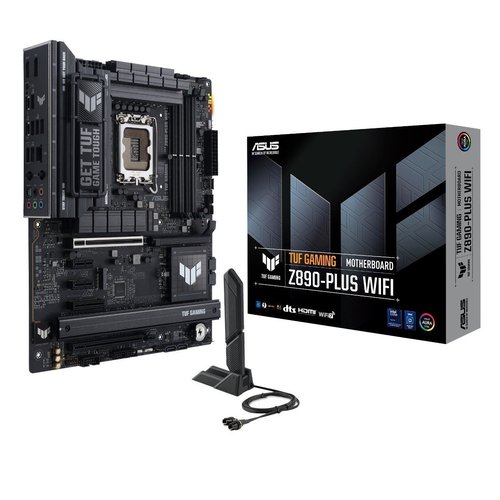

ASUS TUF GAMING Z890-PLUS WIFI is built to harness the full potential of the latest Intel Core Ultra (Series 2) processors, combining gaming performance with proven durability. Featuring military-grade components, an upgraded power design, and comprehensive cooling, this motherboard exceeds expectations by delivering reliable, stable performance for marathon gaming sessions. TUF GAMING motherboards undergo rigorous durability testing to ensure they perform under conditions where others might fail. This platform delivers the power and connectivity needed for cutting-edge AI PC applications.
Comprehensive AI Solution. ASUS AI Solutions—including AI Advisor, AI Overclocking, AI Cooling II for thermal control, and AI Networking II for real-time bandwidth optimization—offer intelligent assistance, one-click overclocking, efficient cooling, and new levels of ultra-fast connectivity.
NPU Boost. The integrated NPU in Intel Core Ultra (Series 2) processors efficiently accelerates AI workloads, and NPU Boost enables even more. This BIOS feature overclocks the NPU with a single click, increasing performance by up to 24%.
Robust Power Design. Stable power delivery is critical for maximizing Intel processor performance. This motherboard is engineered to meet the demands of high-core-count CPUs, featuring a 16(80A) + 1(80A) + 2(80A) + 1(80A) power stage configuration. Each stage integrates high- and low-side MOSFETs and drivers in packages rated for up to 80A, ensuring optimal power delivery, efficiency, stability, and performance for current and future Intel processors.
AEMP III for Maximum DDR5 Performance. ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware solution that unlocks unmatched memory performance with the latest CUDIMM modules. Using a two-phase tuning process, AEMP III first optimizes the clock driver, then memory frequency, achieving an ideal balance of performance and stability even at DDR5-7600 speeds and beyond.
M.2 PCIe 5.0 Support. This motherboard includes one PCIe 5.0 M.2 slot for ultra-fast data transfer speeds up to 128 Gbps. All M.2 slots support NVMe RAID configurations, enabling users to leverage the latest storage performance.
Cooler Compatibility. ASUS AIO coolers deliver high performance, strong overclocking potential, bold aesthetics, and customizable functionality, perfectly matching the new motherboards to help build your dream gaming rig.
Expanded Connectivity. This motherboard offers extensive connectivity options, including PCIe 5.0, Thunderbolt 4, and front-panel USB 20 Gbps Type-C with fast charging support.
WiFi 7. Next-generation WiFi 7 supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections with low latency, utilizing 2.4, 5, and 6 GHz bands to extend coverage and boost bandwidth.
20 Gbps USB Port with DP Alt Mode. The motherboard features a front-panel 20 Gbps USB Type-C connector for high-speed data transfer up to 20 Gbps. Power Delivery (PD) 3.0 supports fast charging up to 30W.
PCIe 5.0 for Graphics Cards. PCIe 5.0 doubles the data transfer speed compared to PCIe 4.0, making it robust enough for new data-intensive tasks. PCIe 5.0 also brings electrical improvements for better signal integrity, CEM connectors compatible with previous PCIe add-in cards, and backward compatibility with earlier PCIe versions.
Thunderbolt 4 Support. Each port delivers bidirectional bandwidth up to 40 Gbps for the latest ultra-fast devices and storage. Both ports support connecting up to two external 4K displays.
Personalization. TUF GAMING Z890-PLUS WIFI enhances the user experience—from simplified BIOS setup to full RGB lighting control—enabling users to create a uniquely styled system.
Addressable Gen2 RGB Headers. Three addressable Gen2 RGB headers detect the number of LEDs on compatible RGB devices and automatically adjust lighting effects accordingly.
Realtek 7.1 Channel Audio. This motherboard features the Realtek ALC1220P audio codec developed in close collaboration with Realtek. It delivers an exceptional 120 dB SNR for line-out and 113 dB SNR for line-in, ensuring pristine audio quality. An impedance-sensing circuit automatically adjusts gain to provide optimal volume range for your headphones.
DTS Audio Processing. DTS Audio Processing enhances sound from gaming headsets and speakers by reducing distortion and delivering deeper bass, so games, movies, and music sound better. It also allows customization of audio settings.
ASUS WiFi Q-Antenna. ASUS WiFi Q-Antenna provides 18% more reliable wireless signal reception compared to the previous generation.
Build with Confidence. TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands, ensuring compatibility across a wide range of parts including cases, power supplies, CPU coolers, memory kits, and more. With new partners and components added regularly, the TUF GAMING Alliance continues to grow and strengthen.
