Description

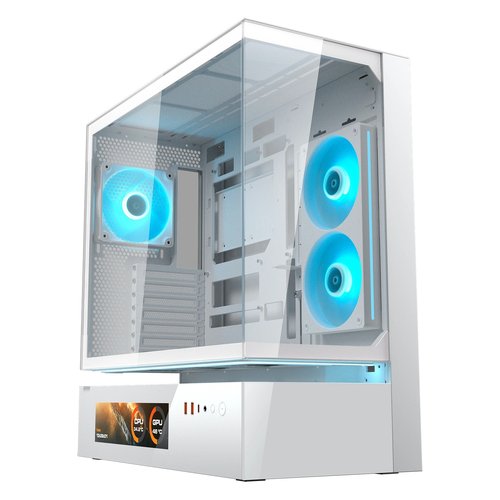

CFV235 Vision is a new type of PC case featuring an innovative Central Floating Ventilation (CFV) design. This separates the power supply compartment from the main chamber using a structural air channel, utilizing the space between for improved cooling and additional airflow. An integrated 9.16-inch IPS TFT LCD display enables real-time system monitoring with 1920x462 resolution and a 60 Hz refresh rate, showing critical data and customizable visual effects. Combining full panoramic visibility, compact dimensions, architecturally enhanced cooling, and immersive display technology, CFV235 Vision visualizes airflow beyond conventional boundaries.
True Floating Structural Separation
Traditional cases place the power supply—the main heat source—and critical components in the same chamber, limiting airflow access to only the top, front, and rear panels. Central Floating Ventilation separates the PSU chamber from the main compartment with a structural air gap, allowing greater freedom and directionality for airflow. This open architectural design also gives the CFV235 series a unique, progressive appearance.
270° Air Access in a Suspended Chamber
The floating space in the CFV235 series forms a fully three-dimensional, discrete cavity suspended within the chassis. A spacious, unobstructed 270° air intake ensures superior ventilation exactly where it's needed most.
System Monitor
The CFV235 Vision monitor features a 9.16-inch IPS TFT LCD display with 1920 x 462 resolution and a 60 Hz refresh rate for real-time system monitoring. Track critical data—from temperatures to fan speeds—and personalize the display with JPG, PNG, GIF, or MP4 content. Control is managed via dedicated software acting as an operations hub.
Instant Control
Performance data and full control over display settings and alignment are instantly available through downloadable software, providing a management console directly on your desktop. Download software
Pre-installed Reverse Blade Unity ARGB 240 Fans
COUGAR Unity ARGB 240 single-frame PWM-controlled fans with reverse airflow blades are pre-mounted on the motherboard, delivering precise speed control, exceptional cooling, near-silent operation, and stunning RGB lighting right out of the box.
Rainbow Between Them
The Aurora light strip internally illuminates the Central Floating Ventilation structure, highlighting this innovative feature as a reimagined architectural element. It comes included and attaches magnetically for convenience and ease of use.
Light. Speed.
The CFV235 Vision includes a built-in universal fan hub that seamlessly coordinates PWM-controlled fan speeds and RGB lighting. This allows RGB control without additional software or synchronization with motherboard software.
Dual Magnetic Filtration
Magnetic dust filters on the top and base of the Central Floating Ventilation structure actively prevent dust and debris buildup, maintaining clean and uninterrupted airflow without compromising the floating design.
Vertical Space Efficiency
Positioning the central floating ventilation channel along the vertical axis avoids increasing overall width, preserving compactness.
Spatial Engineering
A 38 mm clearance behind the motherboard tray improves cable management, providing extra space for routing and hiding cables of various thicknesses. Five adjustable Velcro straps offer versatile options for securing and neatly organizing cables.
Architectural Strength
A 1.5 mm thick steel frame reinforces the chassis, maintaining structural integrity even with the suspended central ventilation design. The result is a bold, open architecture that remains rigid, reliable, and ready for high-performance builds.
Universal Compatibility
Compatible with motherboards featuring rear I/O connectors and supporting GPUs up to 430 mm in length, the CFV235 Vision is designed for future-ready gaming systems. An L-shaped GPU support bracket with flexible mounting options prevents sagging.
Peripherals
The CFV235 Vision includes one USB 3.2 Gen 2x2 Type-C (20 Gbps), two USB 3.0 Type-A ports, and a 4-pin audio jack for headset connectivity.
Cooling Capacity
The CFV235 Vision supports up to three 120 mm or three 140 mm fans on top, three 120 mm fans at the bottom of the main chamber, two 120 mm fans on the side of the motherboard tray, and one 120 mm fan at the rear. Water cooling support includes up to 360 mm radiators on top.
Sold Out
With support for two 3.5-inch HDDs and two+two 2.5-inch SSDs (converted from 3.5-inch bays), the CFV235 offers versatile storage options and ample room for future expansion.
